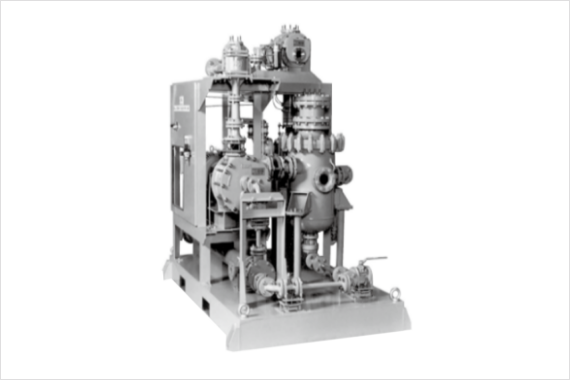

Vacuum Pump

Features

• High corrosion resistance vacuum generating unit

  The main components are a liquid sealed vacuum pump, a gas ejector, and a mechanical booster pump, and all gas contacting parts are made of highly corrosion-resistant materials such as ceramics, glass lining, PTFE, and carbon. The pump can suction any gas except hydrofluoric acid gas, and completely solve following problems which pumps used for corrosive gases typically face.

  Oil-sealed Rotary Vacuum Pumps

  • • Maintenance costs for oil solidification, disassembly, cleaning, etc.
  • • Increasing cost by periodically replacing oil and pumps
  • • Cost of detoxification treatment equipment installed before the pump

  Oil dripping type vacuum pump

  • • Increase in the amount of oil used

  Liquid-sealed vacuum pump made of corrosion-resistant metal

  • • Increasing cost by periodically replacing impellers and other parts
  • • Increased cost for installation of detoxification equipment and wastewater treatment

  Steam ejector

  • • Increased cost for installation of detoxification equipment and wastewater treatment for condensation water

• Excellent pumping characteristics

  Liquid-sealed vacuum pumps up to 65mm and mechanical booster pumps up to 80mm in diameter are integrated into a series, enabling pumping rates up to 300m3/hr and achievable vacuum rates up to 0.04kPa.
  It can be used as a core vacuum generation unit from bench-scale test plants to actual plants.

• Energy and Space-saving vacuum generation unit

  The rotating part is made of partially stabilized zirconia (PSZ), which has excellent strength and toughness, and is as thin-walled and high-speed rotating as various metal vacuum pumps.
  Especially for steam ejectors, the pump has the advantage of requiring about 50% less kinetic energy and occupies 30% of the space.

• Complete instrumentation

  We can offer fully automated unit for pump operation, temperature and pressure detection, and valve opening and closing.

Caution

This product is among the restricted product types listed in Appended Table 1 of the Export Trade Control Order. Export requires export permission based on the Foreign Exchange and Foreign Trade Act and other relevant laws.
